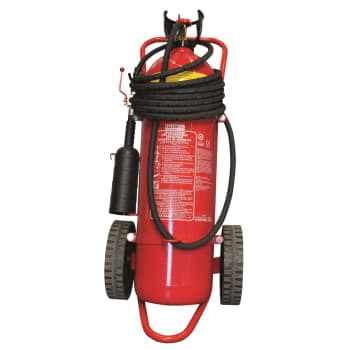

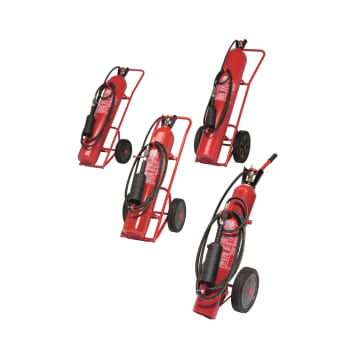

CO2 Fire extinguishers

The large mobile extinguishers with high extinguishing efficiency are particularly suitable for areas with high fire spread such as hazardous materials stores, laboratories, transformers, and in all areas of aviation.

Main advantages of carbon dioxide fire extinguishers
  • Approval according to EN 1866
  • The snow tube enables a targeted extinguishing agent application

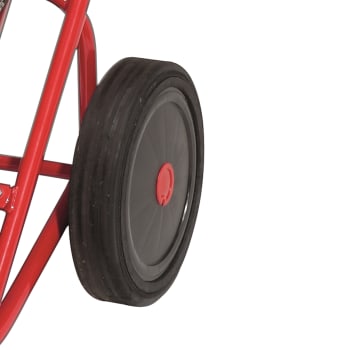

  • Highest mobility due to large wide wheels
  • Optimal for shipping: frame can be dismantled

Details and performance features of the carbon dioxide fire extinguishers
  • Compressed gas tank exterior with a weather-resistant and durable coating
  • Extinguishing agent tank with safety bursting disc device, test pressure 250 bar
  • Excellent stability due to stable tubular chassis

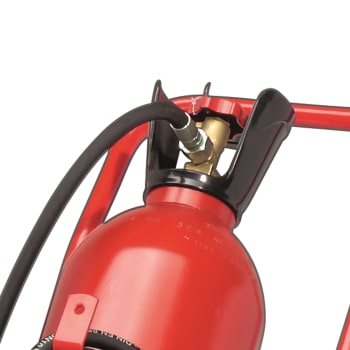

  • Valve with circumferential valve protection
  • Suitable for electrical systems up to 1000 volts at 1 m minimum distance, above this observe DIN VDE 0132
  • Fields of application: Industry, marine, airports, logistics
  • Units are quickly ready for use thanks to the rotary valve.

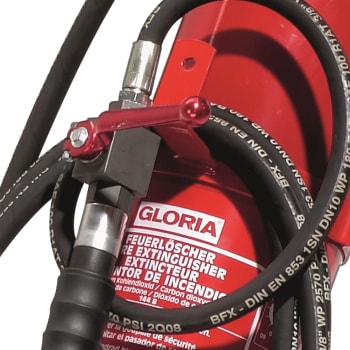

  • Extinguishing agent jet can be turned off at any time by means of the valve lever
  • Additional handles on the insertion tube allow safe and optimal handling
  • High-pressure hose as standard:
            Type
            CF 10 with 6 m
            CF 20 with 6 m
            CF 30 C with 10 m
            CF 50 with 10 m
You can conveniently download the following materials:

  • Data sheet
  • Tender specification
